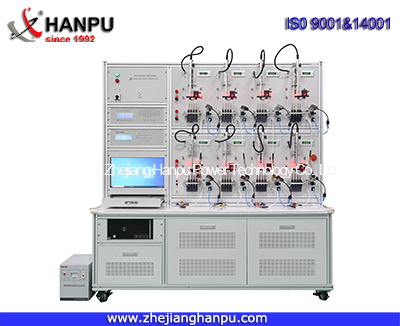

Customized Single Phase Electrical Meter Test Equipment with 8 Meter Positions (PTC-8125M)

Share to:

Customized Single Phase Electrical Meter Test Equipment with 8 Meter Positions (PTC-8125M)

Availability:

Quantity:



Inquire Add to Basket

Model:
PTC8125M-8
Brand:
HPU
Code:
9030849000

Product Description

Single Phase Energy Meter Test Bench is accords with the standard of "IEC 521, 1036, 687and 145 for mechanical meters, IEC 62052-11,IEC 62053-11, 21, 22, 23 for static electronic meters. This bench can be used to test single phase energy meter (up to 0.5 class).
According to the different requirements of customers such as Meter Manufacturer, and provincial metrology centers, we can provide customized, combined flow design, installation, commissioning, and full-time operation and maintenance services with single-phase, three-phase meter test bench.

ITEMS		PTC-8125M	PTC-8125E	PTC-8125H	PTC-8320D	PTC-8320E	PTC-8320H	PTC-7100
Basic functions	Basic error	○	○	○	○	○	○	×
	Creeping test	○	○	○	○	○	○	×
	Starting test	○	○	○	○	○	○	×
	Standard deviation	○	○	○	○	○	○	×
	Constant test	○	○	○	○	○	○	×
	Meter constant	○	○	○	○	○	○	×
	Influence test	○	○	○	○	○	○	×
	No load test	○	○	○	○	○	○	×
	Max demand test	○	○	○	○	○	○	×
	Repeat test	○	○	○	○	○	○	×
Multi-functions test	Day time error	☆	☆	☆	☆	☆	☆	×
	L/N switching	☆	☆	☆	☆	☆	☆	×
	Communication test	☆	☆	☆	☆	☆	☆	×
	Power consumption test	☆	☆	☆	☆	☆	☆	×
	High voltage	×	×	×	×	×	×	○
