Energy Meter Field-Testing Instrument -Three-Phase Portable Energy Meter Calibrator (HPU3006)

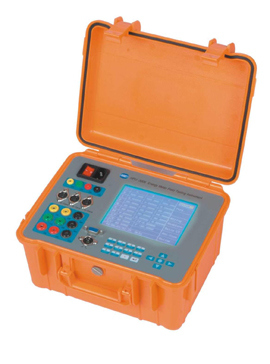

HPU3006 Field-testing Instrument



2. Specification

2.1 Accuracy class: 0.1 (0.05)

2.2 Frequency range: 45Hz ~ 65Hz

2.3 Input Voltage: 10V ~ 450V

2.4 Input Current: Terminal input: 0 ~ 5A (1A)

Clamp type meter input: 0 ~ 5A or 0 ~ 800A

2.5 Measuring accuracy :

Voltage : 0.1% ( 0.05% )
Current : 0.1% (0.05% ) Terminal input ),0.5%( Clamp type meter input )
Watt /Var: 0.1% (0.05%) Terminal input ),0.5%( Clamp type meter input )
Watt /Var: 0.1% (0.05%) Terminal input ),0.5%( Clamp type meter input )
Power Factor : 0.1% (PF 0.5 - 1)
Frequency : 0.05%

2.6 The movement display on Vector diagram: it can have the
movement display on vector diagram and measuring and
displaying the phase voltage.

2.7 Wiring: differentiate the wiring under the three phase three
cable system, positive/negative

2.8 Harmonic analysis: It can analyze the harmonic (up to 63 times) and   test the distortion. Also, it can have the movement display for real wave form on random parameters which is under the testing. It has the feature of oscilloscope.

2.9 Input Current : Clamp type meter input , 1A terminal input, 5A
terminal input.

2.10 Data: It can save 250 pieces information of energy meter in
local facility

2.11 Power supply: AC/DC 80~265V, It can automatic cut if voltage
overstep limit.

2.12 Communication port : RS232, It can online test with
communicate compute.

2.13 Volume : 280x225x155 (mm)

2.14 Weight: 3 kg



1. Features

The field-testing instrument HPU-3006 is made by using the newest
international digital electron technical skill.

To use DSP, the Digital Signal processor, as the axis to install this intelligent comprehensive automation field testing instrument, which comes
with a portable computer, operation menu suggestion.

This instrument is simultaneously able to measure the value of single or 3 phase parameters as voltage, current, frequency, energy, power factorand etc. In the field, it can test the various type of energy meter, and it also can analyse harmonic and judge wiring connection. The results can be saved for a long term.

The HPU-3006 can communicate with computer by RS-232 port, and
save the measuring results into another computer disk.

This instrument is having the features of high accuracy, good stability,
small volume, easy to carry on and simple to operate; which is the perfect field testing equipment for energy measuring department and comprehensive automation test.
