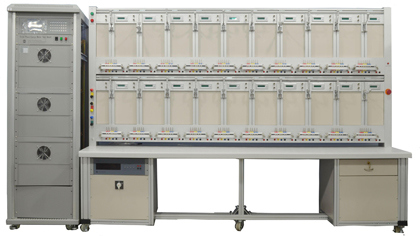

Three Phase Energy Meter Test Bench PTC-8320D-1

1. Features

1.1 The bench accords with the standard of "IEC 60736:1982 Testing equipment for electrical energy meters", "IEC 62053".

1.2 The bench can be used to test both single/three phase active Energy meter and reactive energy meter (up to 0.2 class), it is also suitable for four quadrant test.

1.3 The bench can do warm up test, starting test, no load test(creep test),error test(accuracy test),dial test, tests of the influence quantities(negative phase, voltage unbalance, harmonic wave and so on)and test of repeatability of the measurements.

1.4 The bench is using the PWM, technology to amplify voltage/current output, the high efficiency at >85%, and lower the heat. The PWM can check the malfunction checking, preset, alarm, and protection.

1.5 The signal source is using the newest digital controlled sine Wave technology for frequency, amplitude and phase adjust. The signal source can repeatedly add 2-21 harmonics on the first sine wave, or couse sub-harmonic wave and odd sub-harmonic wave.

1.6 The bench is using the error processor system to calculate the error of each energy meter by the sub-error system which can be connected by the internal RS485(RS232).

1.7 The same specification but different constant energy meter can Be tested at one time.

1.8 The test bench can be installed scanning head, it can offer 3 Ranges adjustment. It is also can be accepted the signal for both round-style energy meter and digital LED energy meter.

1.9The test bench has the auto-search black marker function which Can precisely locate the black marker during the no load test and starting test.

1.10 The bench can choose to operate by keyboard or PC which is Very convenient.

1.11 The working status of bench can be seen very clear and easy operation.

1.12 The bench is using the testing software complied with WINDOWS10 which can auto-testing different energy meters.

1.13 The software can realize the data from energy meter for statistics, search and management.

1.14The energy meter hanging rack is made by Aluminum compound. The whole device configuration is a reasonable design and nice outfit.

2. Specification

2.1 The test bench accuracy class: 0.05

2.2 Reference standard energy meter:
     HC 3100H      Accuracy class: 0.05 /0.02

2.3 Voltage amplifier:
     Output voltage range: 30-400V(phase-neutral)
                                                          50-600V(phase-phase)
         Output power: ≥15VA(every meter)
     Resolution: 0.01%
     Stability: better than 0.05%/180s
     Distortion factor: < 0.5% at linear load;
     Frequency range: 45Hz~65Hz
     Power efficiency: more than 85%
     Ambient temperature:10ºC~50ºC

2.4 Current amplifier:
     Output current: range: 1mA~100A (option for 1mA~200A);
     Output power: ≥25VA(every meter)
     Resolution: 0.01%
     Stability: better than 0.05%/180s
     Distortion factor: < 0.5% at linear load
     Frequency range: 45Hz~65Hz
     Power efficiency: greater than 85%
    Ambient temperature:10ºC~50ºC

2.5 Phase Angle: 0°~360° , resolution of phase angle setting: 0.1°;

2.6 Output frequency range: 45Hz~65Hz; resolution: 0.01Hz

2.7 Output stability of power:<0.05% (180S)

2.8 Numbers of calibrated energy meter: 6-40

2.9 Input power: AC3x220/380V(Y) 15%, 50/60Hz
