1. Characteristic

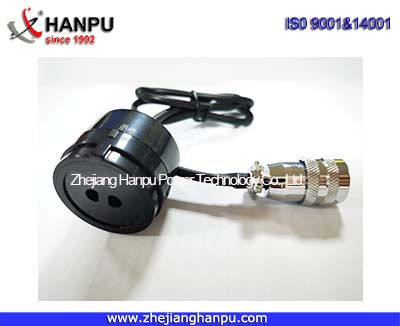

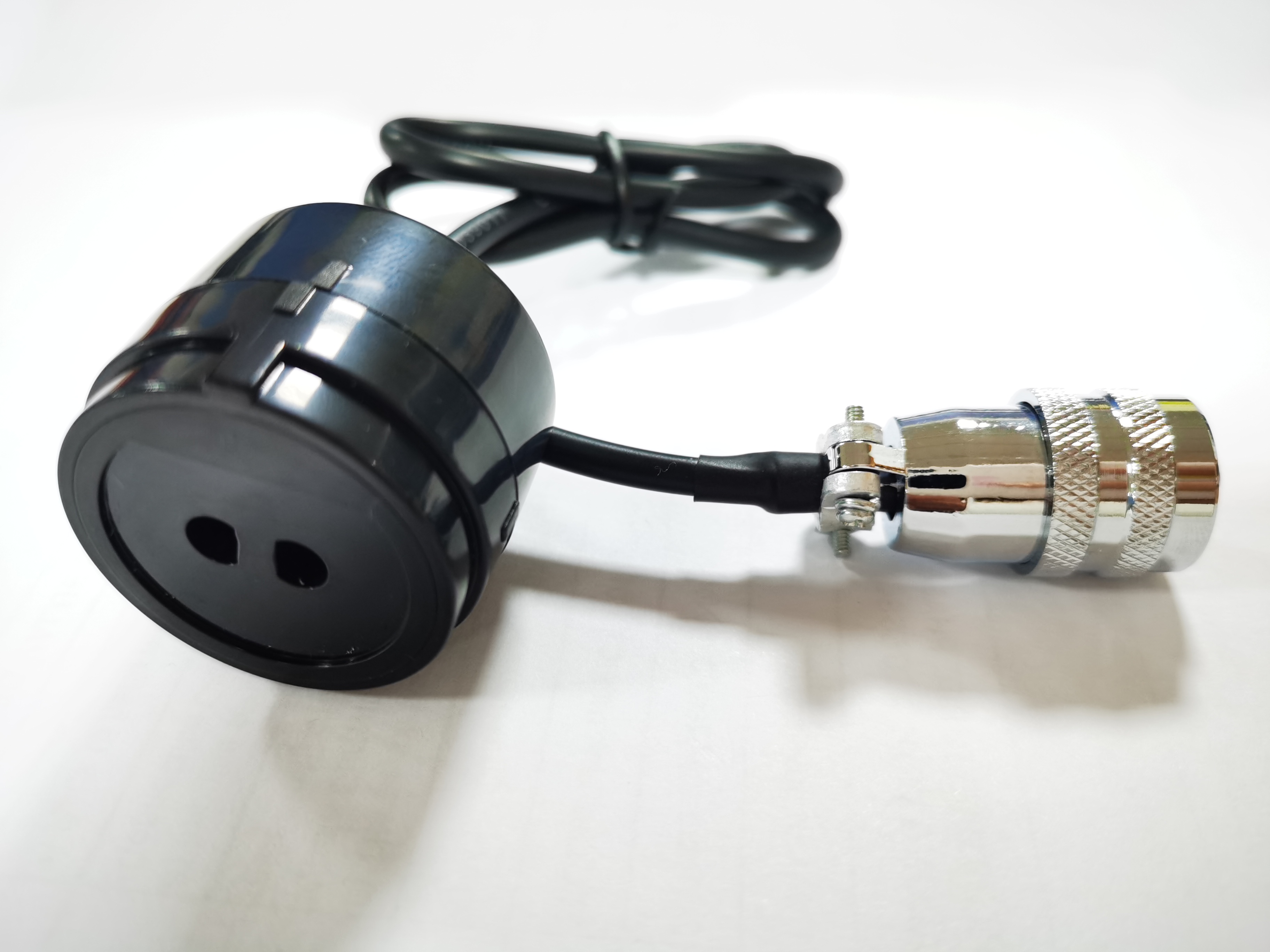

1.1 It is a near-infrared Optic-electric Scanner with composite function, in addition the ordinary Optic-electric Scanner acquisition pulse function it also can do near-infrared communication.
1.2 Applies to a variety of energy meters and a variety of baud rates.
1.3 Ultra-high radiation power and radiation intensity.
1.4 High reliability, low forward voltage.
1.5Applied to high pulse current operation, and has a good spectral match.
2. Specification
| parameter | sign | value | unit |
| Reverse voltage | VR | 5 | V |
| Forward current | IF | 100 | mA |
| Working temperature range | Tamb | -55-+100 | ºC |
| Storage temperature range | Tstg | -55-+100 | ºC |
| Thermalresistance sectionenvironment | Rthja | 350 | K/W |
| Infrared wavelength | 940 | nm |
