Single Phase Kwh/Energy Meter Testing Bench (Two Sources) (PTC-8125M) (ANSI 1S-4S)

Share to:

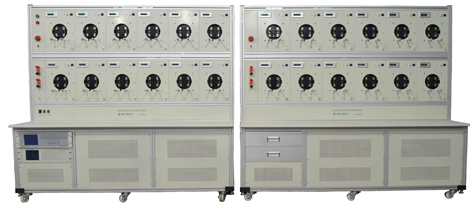

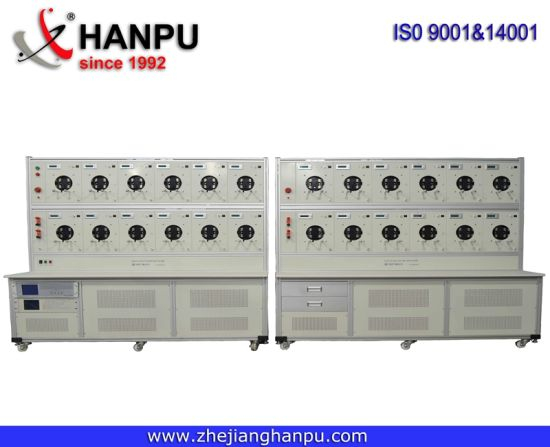

Single Phase Kwh/Energy Meter Testing Bench (Two Sources) (PTC-8125M) (ANSI 1S-4S)

Availability:

Quantity:



Inquire Add to Basket

Model:
PTC-8125M
Brand:
HPU
Code:
9030849000

Product Description

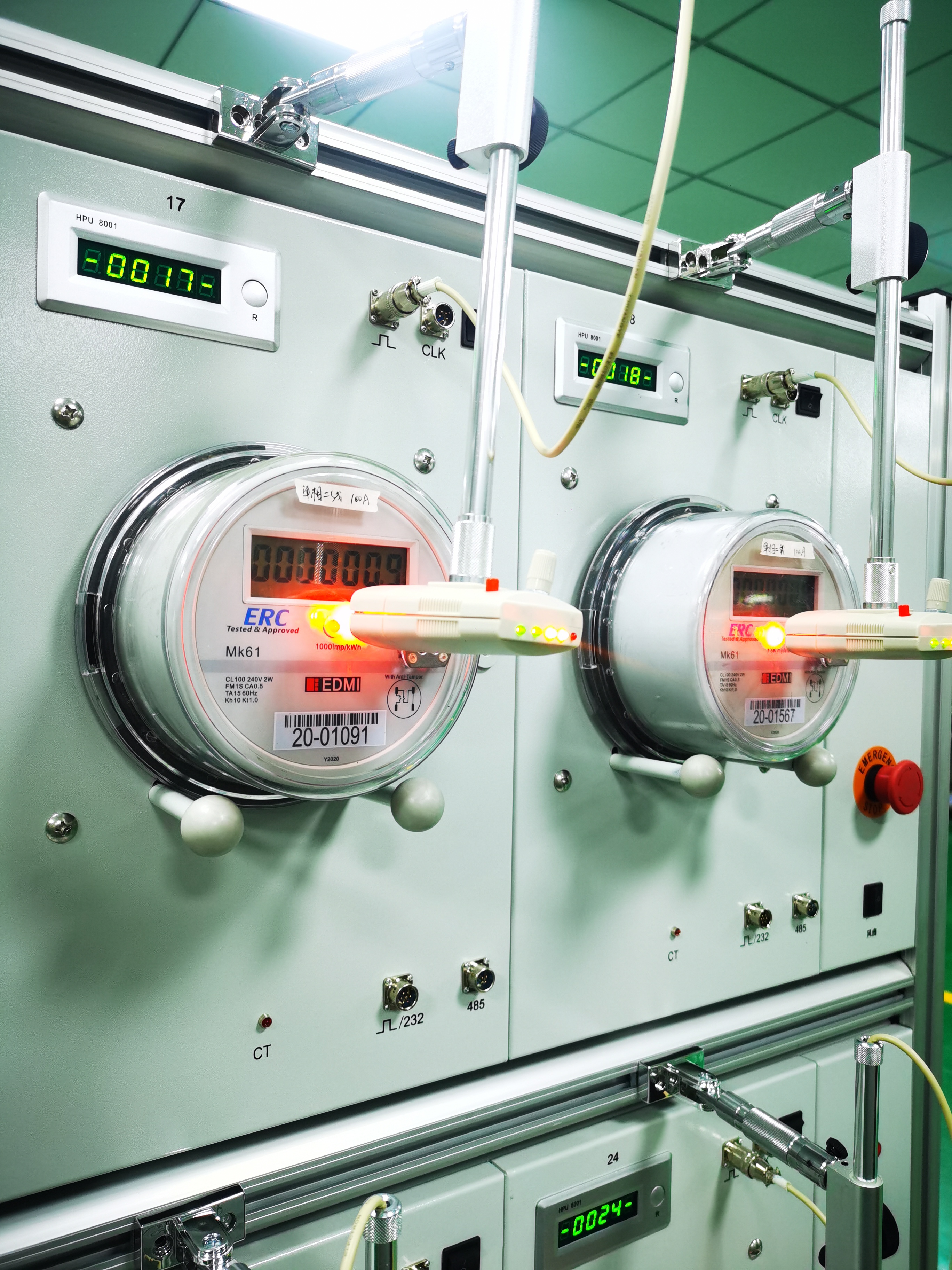

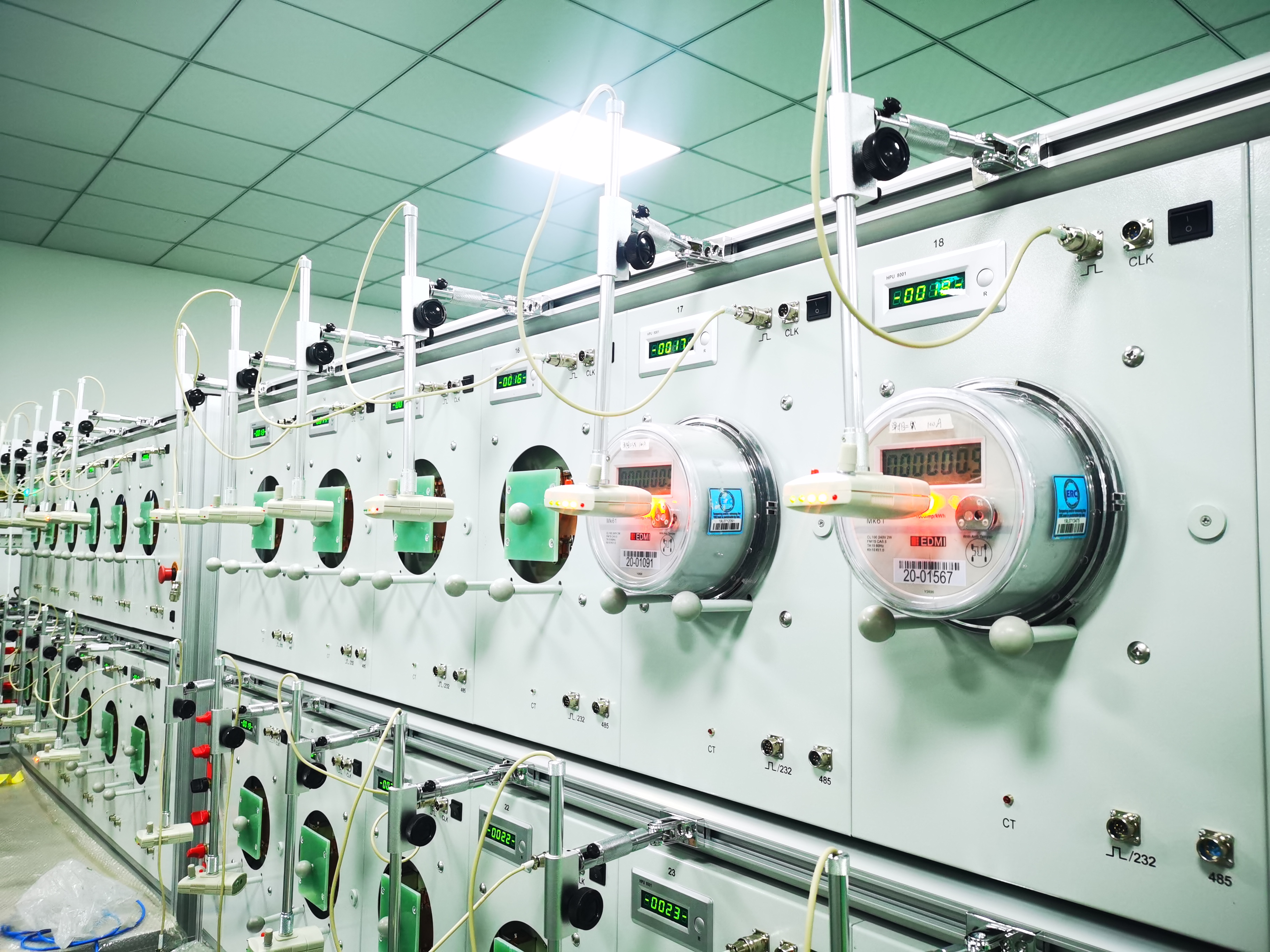

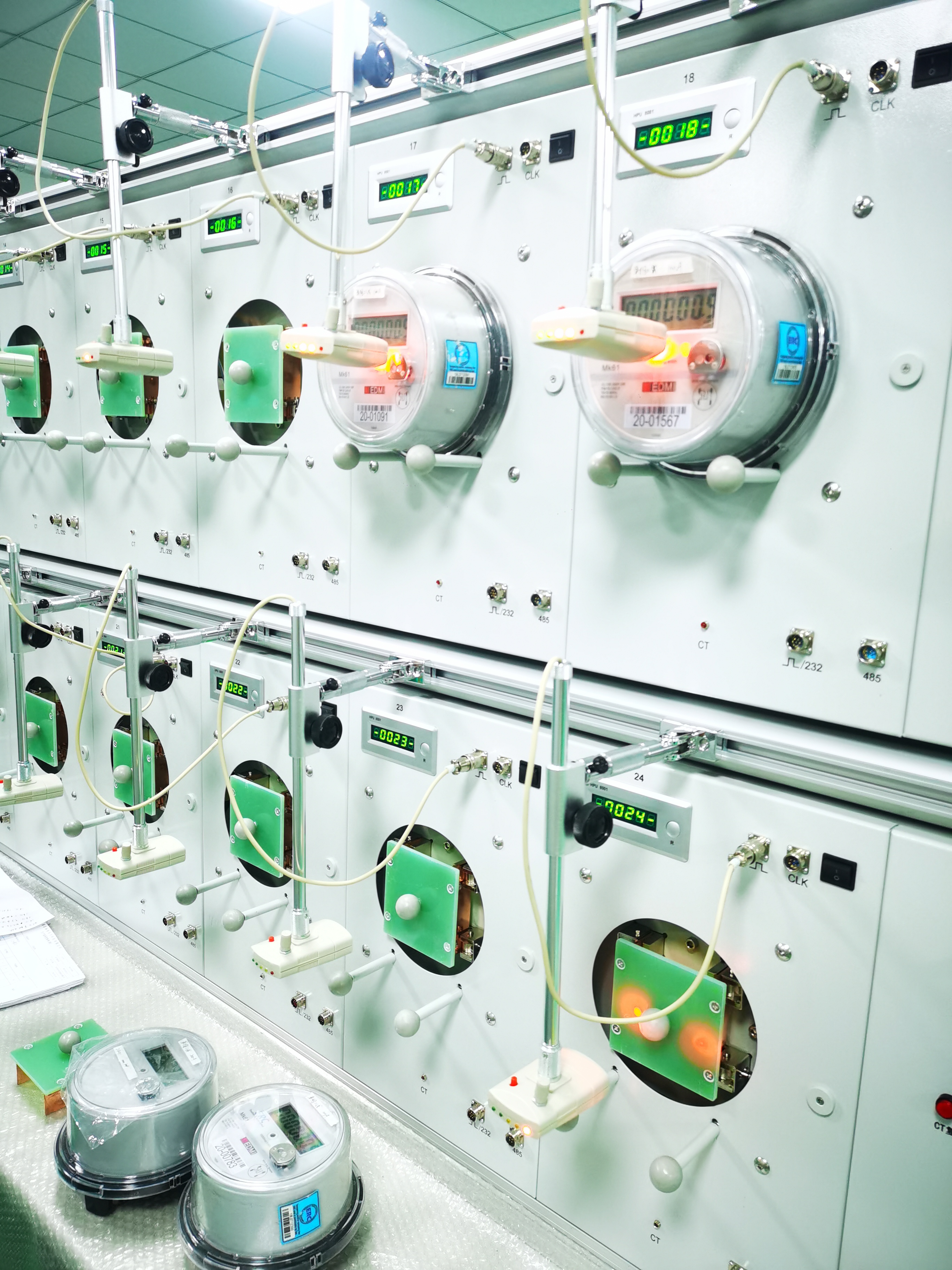

1.1 With specialized ANSI meter, the worker needn't insert and extract,and the bench is suitable for FORM-1S,2S,3S,4S meter.
1.2 The energy meter hanging rack is made by Aluminum compound. The test bench can be installed scanning head. It is also can be accepted the signal for digital LED energy meter.
1.3 The bench uses PC to operate, The bench can automatically do starting test, no-load test(creep test), error test(accuracy test), deviation test, 24h variation test and so on. Test items and condition are flexible, and we can define the test scheme or use the standard test scheme. The test result can store in the data library. The bench can connect to the guest's net and upload the data.

ITEMS		PTC-8125M	PTC-8125E	PTC-8125H	PTC-8320D	PTC-8320E	PTC-8320H	PTC-7100
Basic functions	Basic error	○	○	○	○	○	○	×
	Creeping test	○	○	○	○	○	○	×
	Starting test	○	○	○	○	○	○	×
	Standard deviation	○	○	○	○	○	○	×
	Constant test	○	○	○	○	○	○	×
	Meter constant	○	○	○	○	○	○	×
	Influence test	○	○	○	○	○	○	×
	No load test	○	○	○	○	○	○	×
	Max demand test	○	○	○	○	○	○	×
	Repeat test	○	○	○	○	○	○	×
Multi-functions test	Day time error	☆	☆	☆	☆	☆	☆	×
	L/N switching	☆	☆	☆	☆	☆	☆	×
	Communication test	☆	☆	☆	☆	☆	☆	×
	Power consumption test	☆	☆	☆	☆	☆	☆	×
	High voltage	×	×	×	×	×	×	○
