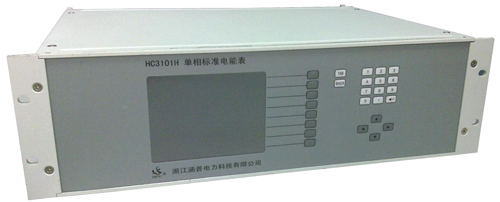

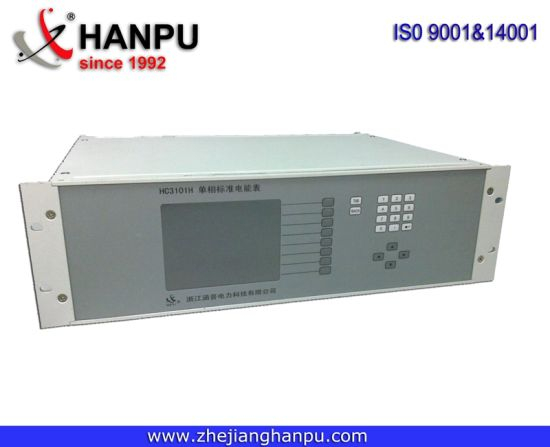

Single Phase Reference Energy Meter (0.02 class) HC3101H

Single Phase Reference Energy Meter(0.02) HC3101H



1. Features

1.1 HC3101H Single Phase Reference Energy Meter is the intelligent high-accuracy reference meter using 18 bits high accuracy ADC and DSP high-speed processor as its core.

1.2 Can test V,A,W,War,VA,F,PF and so on

1.3 Can test and display the content of 2-31 times harmonic. And can display the harmonic diagram to show the harmonic of each direction.

1.4 Real-time display the voltage and current phasor diagram and wave diagram

1.5 Can test the error of the energy meter

1.6 Contains 2G SD card. It can save 100000 pieces information of energy meter in local facility, and can use U disk directly copy the available data;

1.7 Can output reference energy impulse,energy constant can be set by hand

2. Specification

Voltage range: 50/100/200/400V can change by hand or auto
Current range: 0.2A/1A/5A/20A/100A can change by hand or auto
Accuracy class: 0.02

Working environment:temperature:0ºC-40ºC,relative humidity:35%-85%
Temperature affect:(0ºC-40ºC)voltage,current,frequency <5ppm/ºC;
Power<10ppm/ºC

Assistant power supply:AC220±10%;45~65Hz,25VA

Volume: length× width× height: 450mm×320mm×133mm

Weight: 7.5kg
