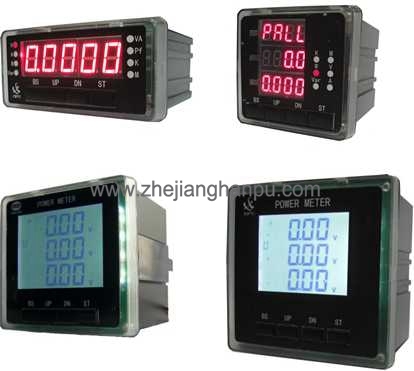

Three Phase Multi-Function Smart Power Meter (PD6814Z-AS4)

Availability:
Quantity:

PD6814Z Series Network Power Meter

Summarize

The new intelligent Network Power meter PD6814Z series is having the unified style,programmable power measurement ,digital display ,digital communications ,and variety of inputs and outputs with high efficiency performance.

PD6814Z series Network Power Meter measures mostly common power parameters, and also presences of reactive power with extensions such as RS485 communication, switches value of inputs and outputs, electrical pulse output and analog output. The Switching values of inputs are used to monitor the status of the switch; also the switching values of outputs are remotely controlled and off-limit alarm. Further, the Analog output function of PD6814Z is the best choice to be the replacement of traditional transmitters under request. Certainly, all data can be read through the RS-485 communication port.

PD6814Z power meter adapt to all the voltage grades and connection mode; it meets the distribution and concentration of all kind of high and low voltage switchgear installations.

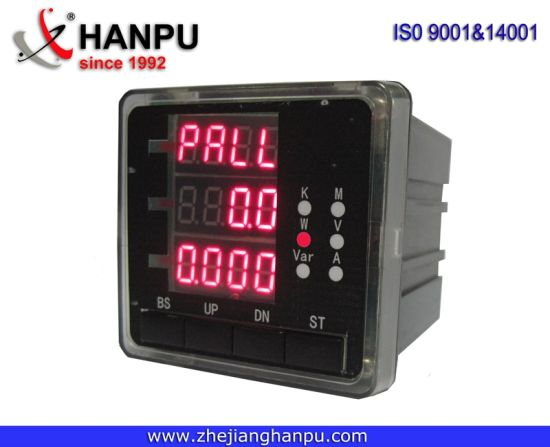

Three Phase Multi-Function Smart Power Meter (PD6814Z-AS4)





Specialty

Integrated electric power parameter measurement
Monitor and control the switch
Calculate active and reactive power
Can be imported directly from the current and voltage transformer, can be arbitrary set PT/CT ratio.
LCD or big character LED display, intuitive display image.
Easy installation, small quantities
RS485 communication port, the standard Modbus RTU protocol, can inset SCDA/PLC system



Applications
The side range of applications of PD6814Z series Network Power Meter are its specialty which suits for higher requirements of power monitoring and safety. The PD6814Z offers the needs for places serve the internal power measurements such as energy management systems, industrial automation, power monitoring, substation automation, intelligent buildings, power distribution panel and switch cabinets, etc.

Type specification

Model No. Measurement Display Additional Function
Digital communication Electric pulse Analog output (optional) Switch value input and output(optional)
PD6814Z-9SY Three phase electricity parameters
and electric energy metering
Segment code LCD display 1 circuit
RS485
1 circuit Maximum 4 circuit Maximum 3circuit relay output and 4 circuit switch value input
PD6814Z-2SY Segment code LCD display 1 circuit Maximum 4 circuit Maximum 3circuit relay output and 4 circuit switch value input
PD6814Z-AS4 Triplex row LED display 1 circuit NON NON
PD6814Z-AS1 Single phase electricity parameters
and electric energy metering
Single row LED display 1 circuit Maximum 1 circuit NON
PD6814Z-5S1 Single row LED display 2 circuit Maximum 1 circuit NON

Installation hole size (Unit:mm)

Shape code Pointer table type Frame size Hole size The minimum installation distance General Installation
A B
2 42 square 120X120 111X111 130 120 93
5 5 sulciform 98X50 91X44 100 50
9 9 square 98X98 91X91 108 98
A 61 square 74X74 67X67 87 82







Performance Index

Technical parameters Index
Reference standard GB/T 13978-1992 GB/T 13850-1998(IEC688-1992)
Input Mode of connection Single phase, Three phase 3 wires, Three phase 4 wires
Voltage Rated value Rated AC 220V(optional 57.7V/100V/380V),indicate when you order it;
Excess load Last:1.2double  instant:2 double/1s
Power dissipation <0.5VA(per phase)
accuracy ±0.5%
current Rated value Rated AC 5A or 1A, indicate when you order it;
Excess load Last:1.2 double   instant:20 double/1s
Power dissipation <0.5VA(per phase)
accuracy ±0.5%
Frequency 45~65Hz
Power accuracy Active, reactive power apparent power is ±0.5%
Electric power measurement accuracy Active power 0.5, reactive power 2.
Electrical source APS(Auxiliary power supply) AC,DC 85~260V
Power dissipation <5VA
Security Withstand voltage 2kV  50Hz/1min
insulation 2kV  50Hz/1min
Electromagnetic Compatibility ESD(electrostatic discharge) Accord with GB/T 17626.2-1998  3 class
Fast transient pulse burst immunity Accord with GB/T 17626.4-1998  3 class
Surge (impact) immunity Accord with GB/T 17626.5-1998  4 class
Environment
Temperature Work:-10~55ºC,Storage:-25~70ºC
Humidness ≤95%RH,no condensation, no corrosive gas
Height 3000m
Protection grade, flame retardant grade Protection grade :IP40   flame retardant grade :V0
Shell material Fully enclosed plastic shell

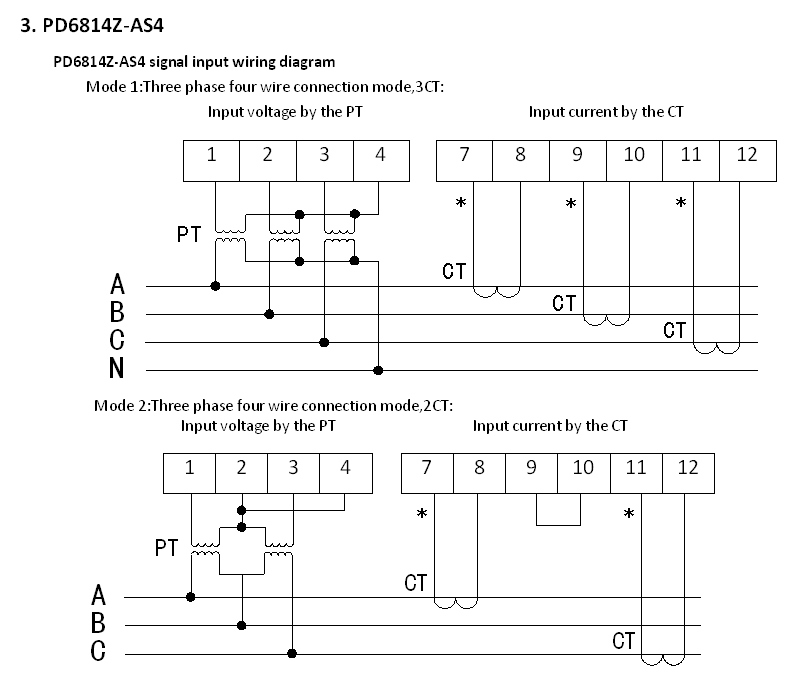

Terminal connection and overall dimensions

Three Phase Multi-Function Smart Power Meter (PD6814Z-AS4)
